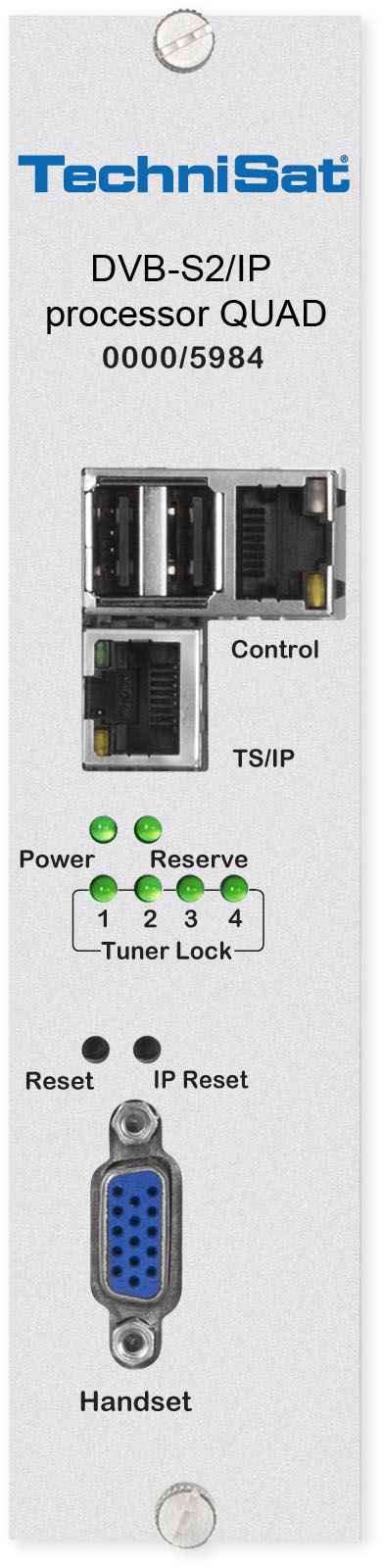

DVB-S2/IP PROCESSOR QUAD, 128 × multicast
€1,555.00*
€1,599.00
DVB-S2/IP PROCESSOR QUAD, 128 × multicast
%
€1,555.00*
€1,599.00
(2.75% saved)
incl. VAT.
- Quad tuner design for DVB-S2
- IPTV- up to 128 channles with Multicast in the IP Net
- SPTS or MTPS transmission up to 430 Mbit/s
- 4 independent ASI outputs
- Control and supervision by web interface or external handset
Ausgestattet mit 4 unabhängigen Sat-Tunern bietet die DVB-S2/IP PROCESSOR QUAD-Karte das beste Kosten-Nutzen-Verhältnis. Es können bis zu 128 SPTS als Multi- oder Unicast in das IP-Netzwerk gestreamt werden.
| Product Information | |
|---|---|
| Colour | silver |
| EAN | 4019588495005 |
| Item no. | 0000/5984 |
| Weight (Box) | 806 g |
| Weight | 538 g |
| Device (W x H x D) | 41 x 4 x 14 cm |
| Box | 48 x 9 x 17 cm |
| Tuner (DVB-S2) | |
|---|---|
| DVB-S2 demodulator | EN 302 307 |
| Demodulation | 8PSK, QPSK |
| Symbol rates | 2 ... 45 |
| Roll off factor | 0,20; 0,25; 0,35 |
| FEC Code rate (LDPC) | 1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 |
| FEC block size | 64 kB |
| Outer coding (BCH) | GF(2^16), t=8, 10, 12 |
| Ambient operating conditions | |
|---|---|
| Ambient temperature | 0 ... 45 °C |
| Humidity | 10 ... 90 % |
| ASI output | |
|---|---|
| Interface | BNC female, 75 Ohm |
| Data rate | 100 |
| Connections | |
|---|---|
| Ethernet 10/100 (RJ-45) | Yes Remote-Control |
| TSoIP output | |
|---|---|
| Ethernet | RJ45 electrical |
| Format | 1000BaseT, IGMPv2, UDP/RTP, Unicast oder Multicast |
| Tuner DVB-S | |
|---|---|
| DVB-S demodulator | EN 300 421 |
| Demodulation | QPSK |
| Symbol rates | 5 ... 45 |
| Roll off factor | 0,35 |
| FEC code rate | 1/2, 2/4, 3/4, 5/6, 6/7, 7/8 (automatisch) |
| Interleaving | Convolutional; l=12 |
| Outer coding | Reed Solomon 204, 188, T=8 |
