SATMAN 65, UNYSAT Octo-LNB yellow with Smiley
€259.00*
€279.00
PRODUCT NO LONGER AVAILABLE

SATMAN 65, UNYSAT Octo-LNB

(2565/9888)

SATMAN external unit with pre-assembled AZ/EL mount, 85 cm Ø

Colour yellow with Smiley

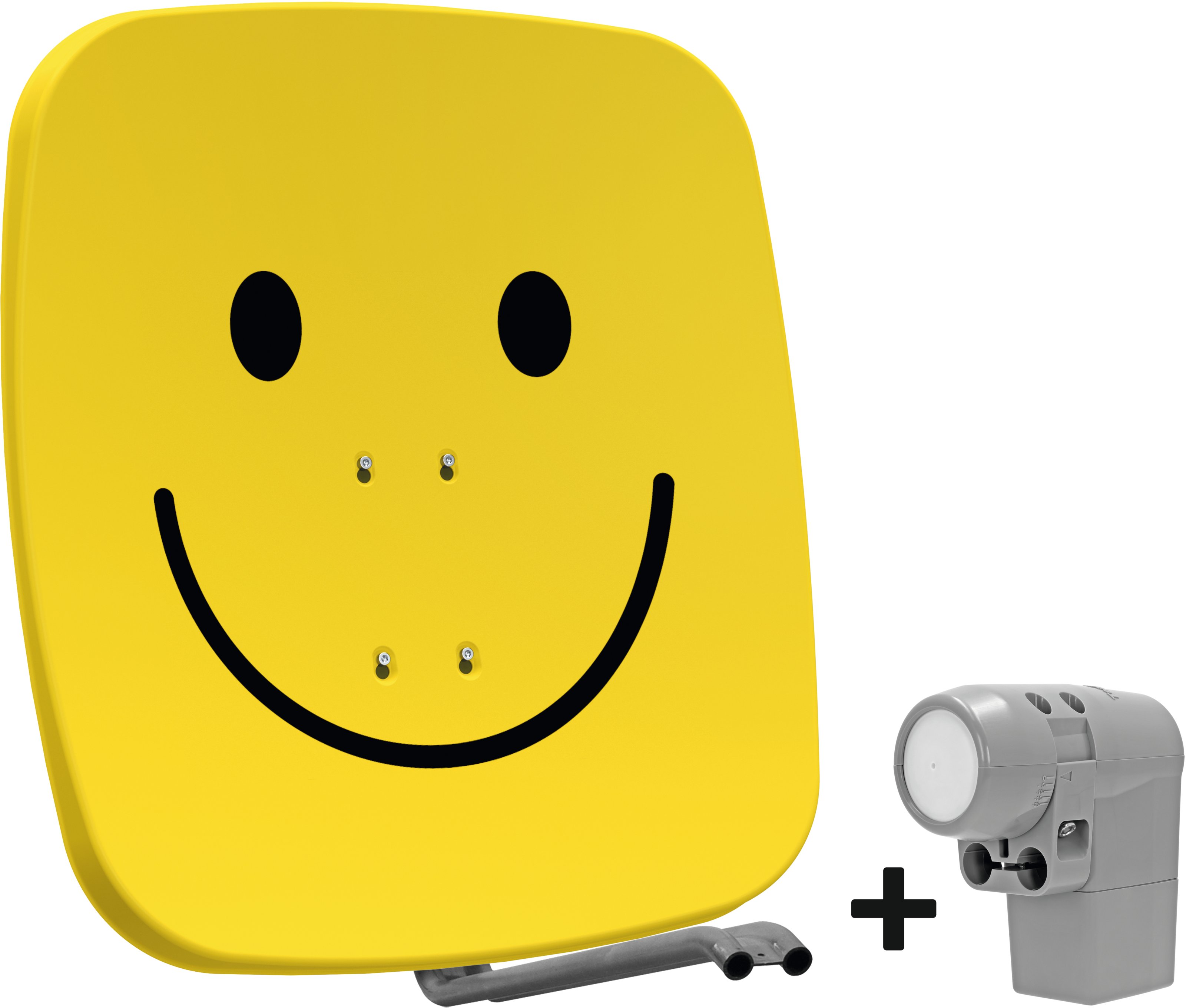

SATMAN 65, UNYSAT-Quattro-LNB Frontal, Front
Product Information
Colour yellow with Smiley
EAN 4019588568884
Item no. 2565/9888
Weight (Box) 6,6 kg
Weight 4,2 kg
Device (W x H x D) 68 x 76 x 5,8 cm
Box 69,2 x 77,8 x 19,5 cm
Local oscillator
Low band 9,75 GHz
High band 10,7 GHz
Accuracy ± 1 MHz
Phase noise -83 @10kHz
Temperature drift ± 2,5 MHz
LNB control
Band switch 22 kHz
Vertical 11,5 - 14,5 V
Horizontal 16 - 19 V
General characteristics
Material Aluminium
Material strength 1,6 mm
Coating Powder-coated on both sites
Colour beige, polar white, slate-grey, brick red, fir green, yellow with smiley
Input frequency range
Low band 10,7 ... 11,7 GHz
High band 11,7 ... 12,75 GHz
Noise factor
Lower frequency range 0,6 dB max.
Upper frequency range 0,6 dB max.
Output frequency range
Low band 950 ... 1.950 MHz
High band 1.100 ... 2.150 MHz
Power supply
Power consumption 210 mA
Prepared for
Number of orbit positions 1
Number of clients 8
Technical data
Rated measurement 0,85 m
F/D 0,67
G/T 17,2
Offset angle 21 °
Gain 38,2 dBi @11,3 GHz
Mast Ø 65 mm max.
Feed reception pour UNYSAT-Universal-LNB
