TECHNISELECT 12 blue/yellow
€229.00*
TECHNISELECT 12
For feeding 12 selectable satellite transponders into a single cable distribution system
€229.00*
incl. VAT.
- 4 full-featured receiver outputs or satellite trunks
- Test output -20 dB, energy-saving function
TechniSelect 12, manual, CD-ROM with TechniSelect Configuration Tool, USB-cable
TechniSelect 12 permits to choose any 12 transponders from 4 Sat IF banks (e.g. all banks of one orbital position) and combine them for distribution over a single cable. Therewith classic TV cabling infrastructure as often encountered in residential blocks or hotels can easily be converted to, or extended by, digital satellite TV (of course in HD, too). A very large number of subscribers can thus be catered for via a single shared cable DTV and FM stereo can be
distributed as well.

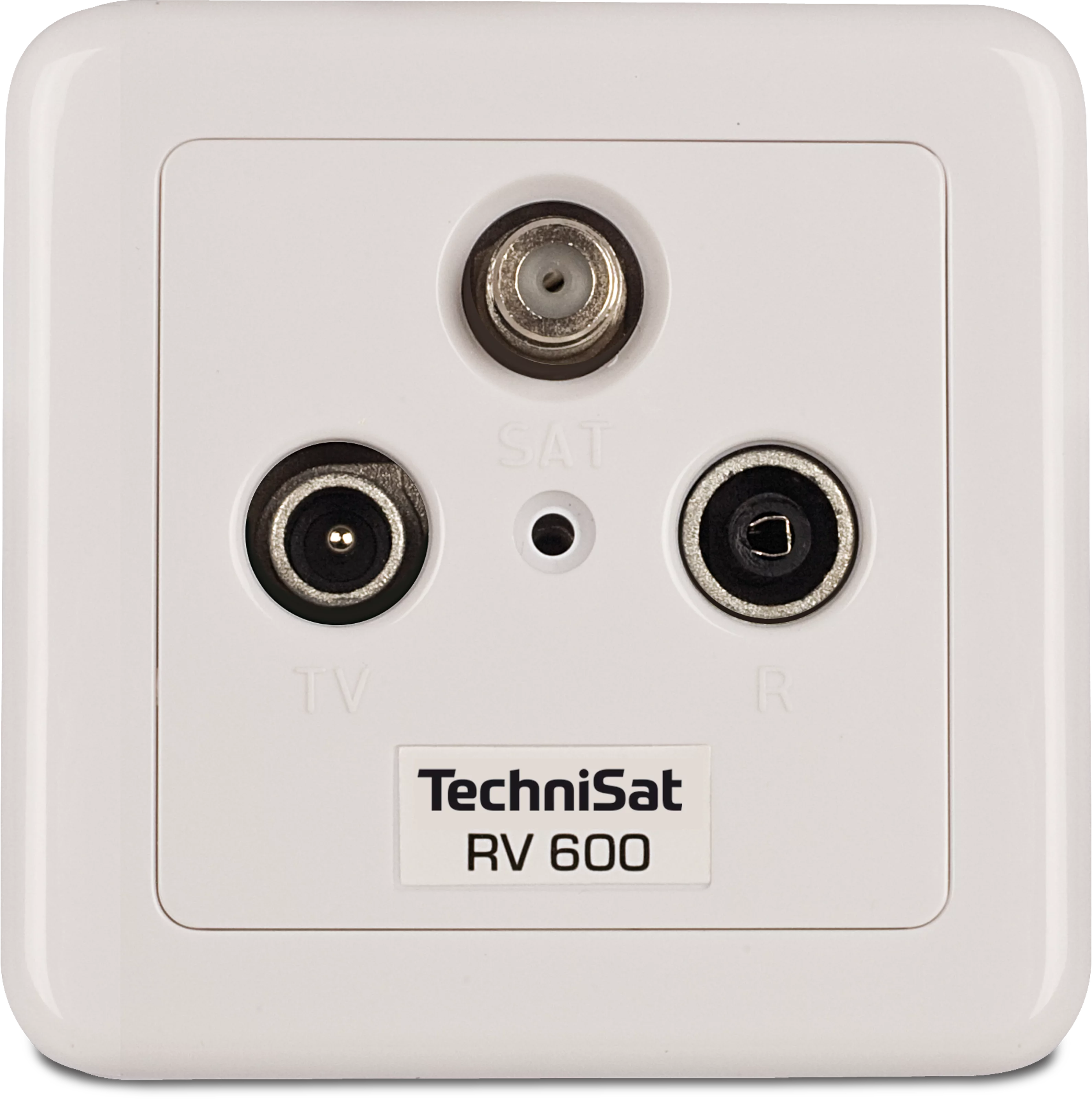

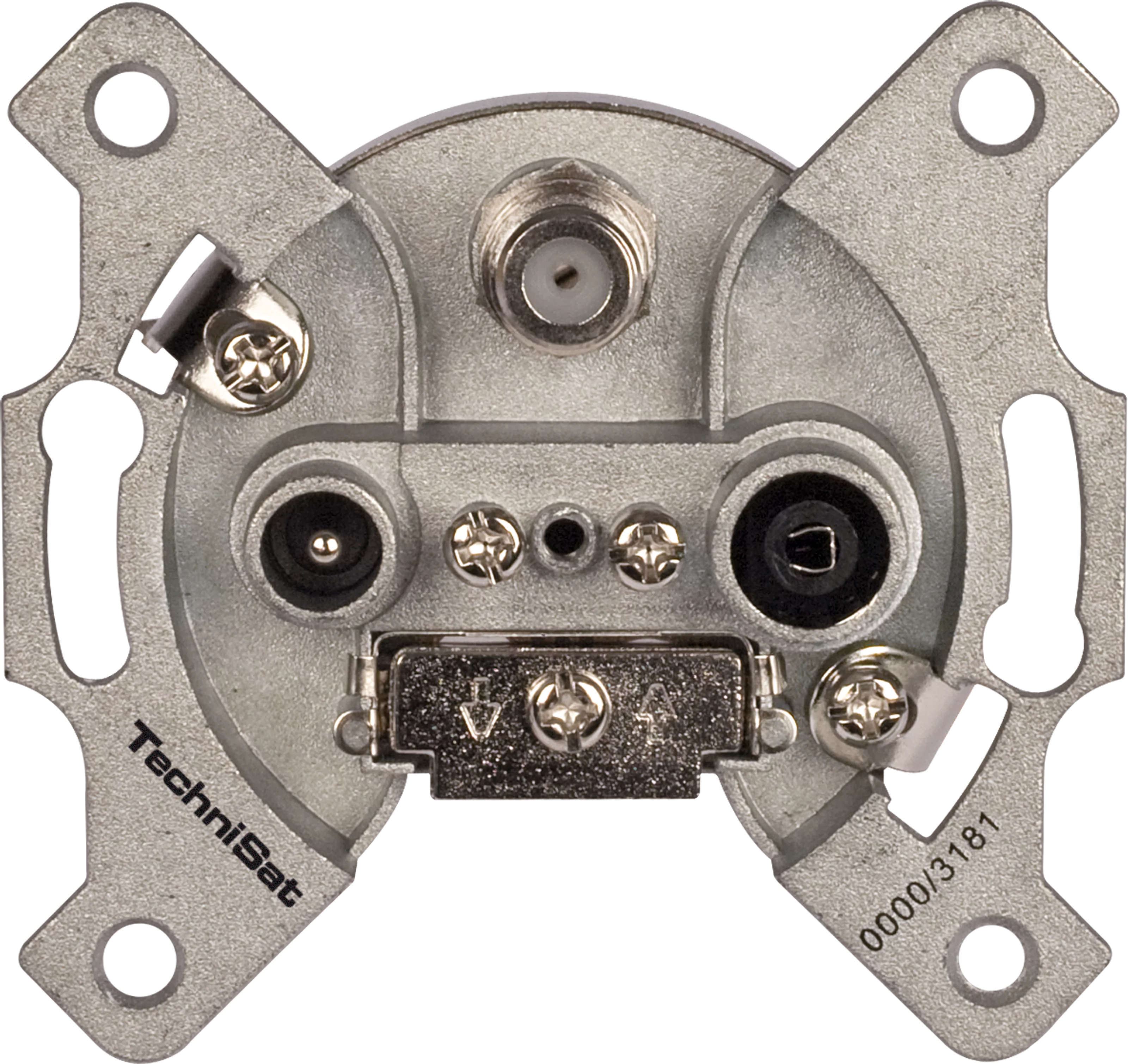

Recommended are TechniSat receivers that come with suitable predefined setup. Nevertheless, in principal any STB or TV suitable for digital Sat can be configured accordingly. Antenna outlets for Sat TV with integrated DC separation diodes have to be used. TechniSelect12 is factory preset for the most popular Astra 19° East programmes. This preselection, however, may easily be modified via USB port using a laptop.
distributed as well.
Recommended are TechniSat receivers that come with suitable predefined setup. Nevertheless, in principal any STB or TV suitable for digital Sat can be configured accordingly. Antenna outlets for Sat TV with integrated DC separation diodes have to be used. TechniSelect12 is factory preset for the most popular Astra 19° East programmes. This preselection, however, may easily be modified via USB port using a laptop.
You are free to install the software updates provided by TechniSat. However, TechniSat expressly points out that we are not liable for material defects that are solely due to the fact that you did not install the updates within a reasonable time, although TechniSat had informed you of their availability and provided you with a flawless installation guide.
| Product Information | |
|---|---|
| EAN | 4019588032996 |
| Colour | blue/yellow |
| Item no. | 0000/3299 |
| Weight (Box) | 800 g |
| Weight | 500 g |
| Device (W x H x D) | 29,2 x 11,2 x 3,1 cm |
| Box | 31,8 x 20 x 4,5 cm |
| sonstiges | |
|---|---|
| bf_filter_digital_single_cable_solution | Yes |
| LNB control | |
|---|---|
| Current consumption | max. 400 mA (für LNB und / oder Verstärker) |
| Vertical | 13 V über VL |
| Ambient operating conditions | |
|---|---|
| Humidity | 10 ... 75 % |
| Ambient temperature | -25 ... 55 °C |
| Decoupling | |
|---|---|
| Trunks | 30 dB |
| General characteristics | |
|---|---|
| Top features | Einspeisung von digitalen Sat-Signalen in vorhandene Kabelstrukturen |
| Top features | Eingang zum Empfang von Terrestrischen Signalen |
| Top features | 4 vollwertige Receiverausgänge oder Sat-Stämme |
| Top features | Messausgang -20 dB |
| Top features | Stromsparfunktion |
| Power consumption | |
|---|---|
| In operation | 11 W (inkl. LNB) |
| Power supply | |
|---|---|
| Nominal voltage | 230 V |
| Mains adapter | internal |
| Frequency | 50 Hz |
| Reception range | |
|---|---|
| Sat | 950 ... 2.150 MHz |
| Terrestrial | 80 ... 790 MHz |
| Single-cable output | |
|---|---|
| Output frequency | 80 ... 2.150 MHz |
| Number of output channels | 12 |
| Frequency of the output channels | 974, 1076, 1178, 1280, 1382, 1484, 1586, 1688, 1790, 1892, 1994, 2096 MHz |
| Frequency SAT | 950 ... 2.150 MHz |
| Frequency DVB-T | 80 ... 790 MHz |
| Output level | max. 105 |
| Output level | 12 ... 20 dB (Einstellbare Verstärkung) |
| Technical data | |
|---|---|
| Satellite inputs | 4 |
| Terrestrial input | 1 |
| Number of cable connections | 1 |
| Subscribers per cable | über 50 |
| Transmission loss | |
|---|---|
| Terrestrial | -20 ... -12 dB (Einstellbare Verstärkung) |
