| EAN | Farbe | Art.-Nr. | Gewicht (Karton) | Gewicht (Gerät) | Gerät (BxHxT) | Karton (BxHxT) |
|---|---|---|---|---|---|---|
| 4019588339828 | Schiefergrau | 1333/9882 | 3 kg | 2,2 kg | 33 x 35 cm | 40,5 x 39,5 x 22 cm |
| 4019588333826 | Schiefergrau | 1333/8882 | 3 kg | 2,2 kg | 33 x 35 cm | 40,5 x 39,5 x 22 cm |
| 4019588033825 | Beige | 1033/8882 | 3 kg | 2,2 kg | 33 x 35 cm | 40,5 x 39,5 x 22 cm |
| 4019588739826 | Polarweiß | 1733/9882 | 3 kg | 2,2 kg | 33 x 35 cm | 40,5 x 39,5 x 22 cm |
| 4019588309821 | Beige | 1033/9882 | 3 kg | 2,2 kg | 33 x 35 cm | 40,5 x 39,5 x 22 cm |
| 4019588348882 | Ziegelrot | 1433/8882 | 3 kg | 2,2 kg | 33 x 35 cm | 40,5 x 39,5 x 22 cm |
| 4019588733824 | Polarweiß | 1733/8882 | ||||
| 4019588359826 | Gelb mit Smiley | 1533/9882 | 3 kg | 2,2 kg | 33 x 35 cm | 40,5 x 39,5 x 22 cm |
| 4019588538825 | Gelb mit Smiley | 1533/8882 | 3 kg | 2,2 kg | 33 x 35 cm | 40,5 x 39,5 x 22 cm |
| 4019588439825 | Ziegelrot | 1433/9882 | 3 kg | 2,2 kg | 33 x 35 cm | 40,5 x 39,5 x 22 cm |
| Top-Ausstattung |
|---|
|
| Lokal Oscillator |
|---|
| Low-Band: 9,75 GHz |
| High-Band: 10,7 GHz |
| LNB-Steuerung |
|---|
| Vertikal: 11,5 - 14 V |
| Horizontal: 16 - 19 V |
| Bandumschaltung: 22 kHz |
| Allgemeine Merkmale |
|---|
| Material: Aluminium |
| Materialstärke: 1 mm |
| Beschichtung: Beidseitig pulverbeschichtet |
| inkl. Wandhalterung: Ja |
| Ausgangsfrequenzbereich |
|---|
| Low-Band: 950 - 1.950 MHz |
| High-Band: 1.100 - 2.150 MHz |
| Eingangsfrequenzbereich |
|---|
| Low-Band: 10,7 ... 11,7 GHz |
| High-Band: 11,7 ... 12,75 GHz |
| Geeignet für |
|---|
| Anzahl Orbitpositionen: 1 |
| Anzahl Teilnehmer: 2 |
| Technische Daten |
|---|
| Nennmaß: 0,33 m |
| F/D: 0,6 |
| Gewinn: 30 dBi @11,3 GHz |
| Offsetwinkel: 30 ° |
| Feedaufnahme: für UNYSAT-Universal-LNB |
| Rauschmaß |
|---|
| Unterer Frequenzbereich: 0,6 dB max. |
| Oberer Frequenzbereich: 0,6 dB max. |
| Stromversorgung |
|---|
| LNB-Spannungsversorgung: 11,5 ... 19 V |
| Stromverbrauch: max. 190 mA |
| Lieferumfang |
|---|

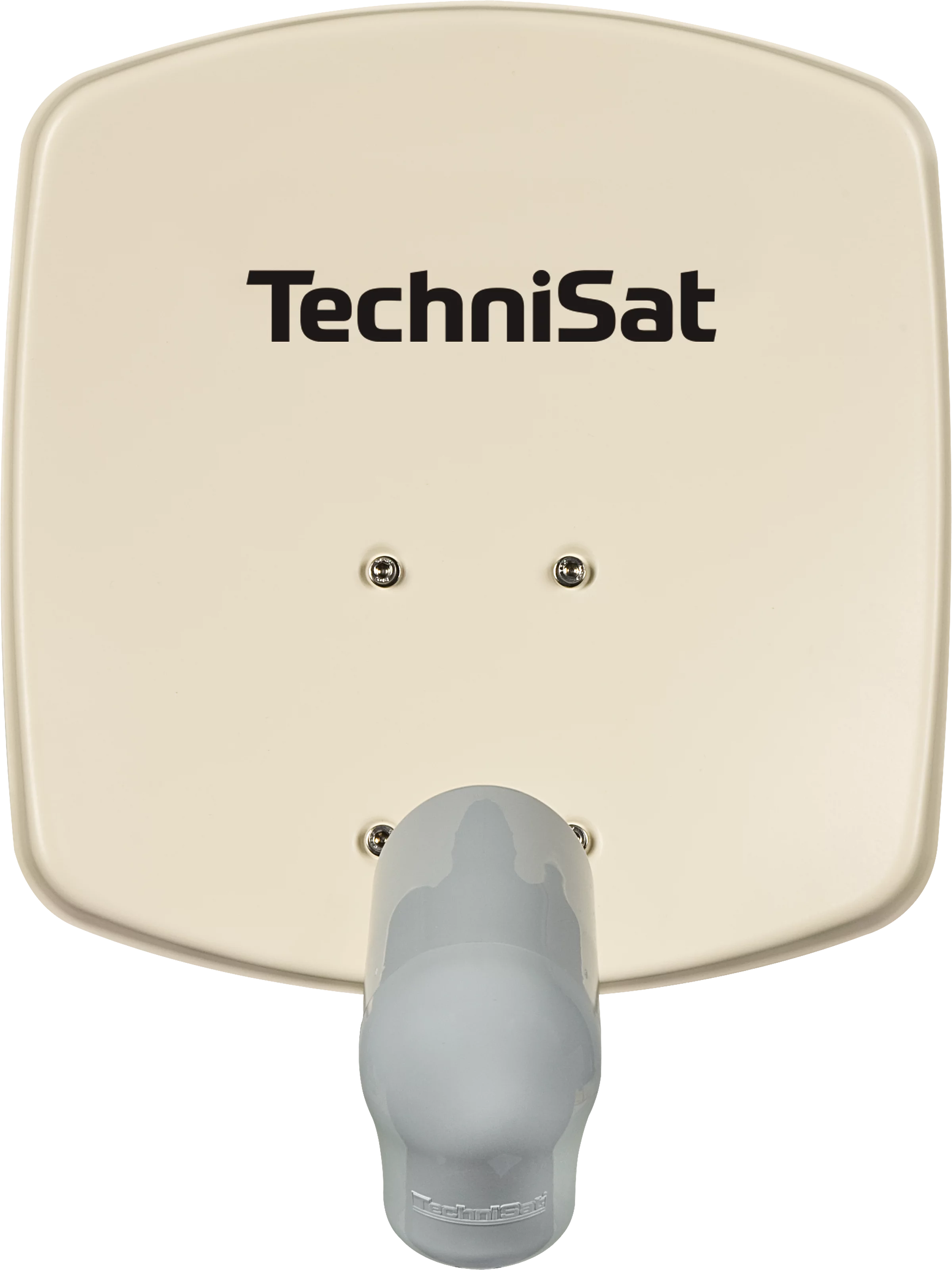

| DigitalSat-Antenne 33 cm, AZ/EL-Halterung, UNYSAT-Twin-LNB, Wandhalterung Mittel, Schrauben, Werkzeug, Montageanleitung |
Zweiter Platz in der Kategorie Sat-Anlagen bei der Leserwahl zum König-Kunde-Award 2014
(Camping, Cars & Caravans)
